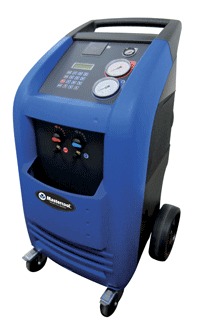

Refrigerant Recovery Machine
Refrigerant Recovery Machine
Product Code : 69788-220
Brand Name : MASTERCOOL
RECOVERY/RECYCLE/RECHARGE |
|
|
• | 3 Pressure Level Gauges to Indicate High and Low Pressure plus Bottle Pressure |
• | LCD Display |
• | Quality Performance Year after Year |
• | Automatic/Programmable or Manual : Can be programmed to complete a continuous recovery/recycle, vacuum and recharge. Can also be set to run each operation individually. |
• | Includes Refrigerant Capacity Database (over 1000 vehicles) : Includes refrigerant capacities for US and Import makes and models from 1995 to 2012. Capable of database upgrades as well. |
• | Auto Oil Discharge : Oil is automatically discharged during the recovery process. If oil is present, it will drain into a graduated container clearly displaying the amount of oil that was removed. |
• | Auto Filter Alarm : The machine’s LCD and alarm will warn that a filter change is required. |
• | Compact Footprint : The machine’s compact design makes it easy to maneuver and requires minimal shop space. |
• | Full Tank Alarm : Notifies operator when tank is full. |
• | Low Refrigerant Alarm : Notifies operator when refrigerant is low. |
|
|
Specifications |
• | Type of Refrigerant: R134a |
• | Voltage: 220-240V, 50/60 Hz |
• | Scale Resolution: 10g (.02 lb) |
• | Operating Temperature Range: 11/49°C (59/120˚F) |
• | Filter: Double Filtering System |
• | Compressor: 12 cc |
• | Vacuum Pump: Capacity 75 l/min |
• | Recovery Speed: 300 g/min (.66 lb/min) in liquid phase |
• | Bottle Heater: Automatic |
• | Hoses: 250 cm (96”) |
• | Couplers: Manual |
• | Dimensions: 55 x 60 x 105 cm |
• | Weight: 80 kg (176 lbs) |
