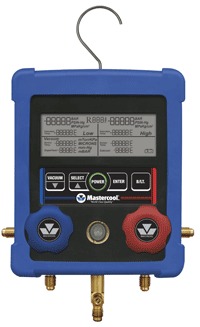

Refrigerant Manifolds

Refrigerant Manifolds
Refrigerant Manifolds
Product Code : 99103-A
Brand Name : Mastercool
Product Description
2 Way Digital Manifold


Class 1.0 standard gauge reading

Pressure Display:

PSI, INHg, Bar, MPa, Kg/cm2

Temperature Display:

°F or °C

Deep Vacuum Display:

Micron, mBar, KPa, mmHg, Pa, Torr, mTorr

Sensing Resolution:

1 psi (.07 Bar, .007 MPa, .07 Kg/cm2)

Sensing Accuracy:

±1 psi or 1% of reading (whichever is greater)

Working Pressure:

0 to 750 psi (52 Bar, 5 MPa, 52 Kg/cm2)

Proof Pressure:

1000 psi (70 Bar, 7 MPa, 70 Kg/cm2) (Tolerable pressure without internal damage)

Refrigerant Temperature Range:

-40 to 200°F (-40 to 93°C)

Operating Temperature:

32 to 122°F (0 to 45°C)

Temperature Accuracy:

±1˚F (±0.5˚C) between 32 to 160˚F (0 to 71˚C)

Storage Temperature:

10 to 120˚F (-12 to 49˚C)


1/4” M-Flare


9V DC battery with optional AC/DC adapter

Battery Life:

30-36 hours pressure and temperature mode only(continuous use) , 25-30 hours vacuum and backlight mode (continuous use)


15 min. with disabling capability
